VS-30BQ100PbF Schottky Rectifier

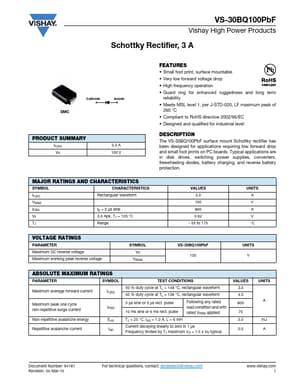

VS-30BQ100PbF Vishay High Power Products Schottky Rectifier, 3 A SMC Cathode Anode PRODUCT SUMMARY IF(AV) VR 3.0 A 100 V .
The VS-30BQ100PbF surface mount Schottky rectifier has been designed for applications requiring low forward drop and small foot prints on PC boards.

VS-30BQ100PbF-Vishay.pdf

VS-30BQ100PbF Datasheet Preview — Preview of VS-30BQ100PbF PDF

Datasheet Details

Part number:

VS-30BQ100PbF

Manufacturer:

Vishay ↗

File Size:

110.87 KB

Description:

Schottky Rectifier

Features

* Small foot print, surface mountable
* Very low forward voltage drop
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliability
* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
* Compliant to RoHS directive

Applications

* requiring low forward drop and small foot prints on PC boards. Typical applications are in disk drives, switching power supplies, converters, freewheeling diodes, battery charging, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) Rectangular wavefo
