VS-30BQ100-M3 Datasheet - Vishay

Schottky Rectifier

VS-30BQ100-M3 Features

* Low forward voltage drop

* Guard ring for enhanced ruggedness and long term reliability

* Halogen-free according to IEC 61249-2-21 definition

* Small foot print, surface mountable

* High frequency operation

* Meets MSL level 1, per J-STD-020, LF maxi

VS-30BQ100-M3 General Description

The VS-30BQ100-M3 surface mount Schottky rectifier has been designed for applications requiring low forward drop and small foot prints on PC boards. Typical applications are in disk drives, switching power supplies, converters, freewheeling diodes, battery charging, and reverse battery protection. .

VS-30BQ100-M3 Datasheet (90.20 KB)

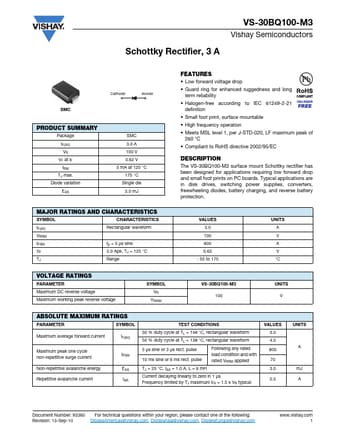

Preview of VS-30BQ100-M3 PDF

Datasheet Details

Part number:

VS-30BQ100-M3

Manufacturer:

Vishay ↗

File Size:

90.20 KB

Description:

Schottky rectifier.
VS-30BQ100-M3 Vishay Semiconductors Schottky Rectifier, 3 A SMC Cathode Anode PRODUCT SUMMARY Package IF(AV) VR VF at IF IRM TJ max. Diode variati.
