VS-30CTQ100-1PbF, VS-30CTQ080SPbF, High Performance Schottky Rectifier

www.vishay.com VS-30CTQSPbF, VS-30CTQ-1PbF Series Vishay Semiconductors High Performance Schottky Rectifier, 2 x 15 A TO-263AB (D2PAK) TO-262AA B.
This center tap Schottky rectifier series has been optimized for low reverse leakage at high temperature.

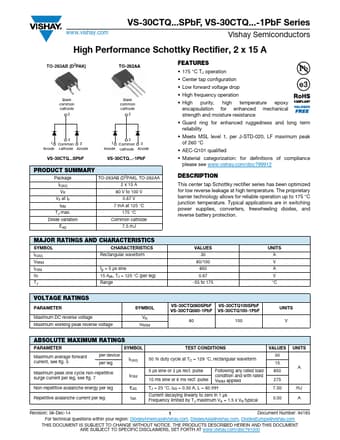

datasheet Preview Page 1 from Datasheet4u.com

VS-30CTQ080SPbF-Vishay.pdf

VS-30CTQ100-1PbF Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-30CTQ100-1PbF, VS-30CTQ080SPbF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VS-30CTQ100-1PbF, VS-30CTQ080SPbF

Manufacturer:

Vishay ↗

File Size:

152.24 KB

Description:

High Performance Schottky Rectifier

Note:

This datasheet PDF includes multiple part numbers: VS-30CTQ100-1PbF, VS-30CTQ080SPbF.
Please refer to the document for exact specifications by model.

Features

* 175 °C TJ operation
* Center tap configuration
* Low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and

Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection.  MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) VRRM IFSM VF TJ Rectangular waveform tp = 5 μs sine 15 Apk, TJ = 125 °C (per leg) Range VALUES 30 80/100 850 0.67 -55 to 175 UNITS
