VS-30CTQ100HN3, VS-30CTQ080HN3 Schottky Rectifier

VS-30CTQ100HN3 Description

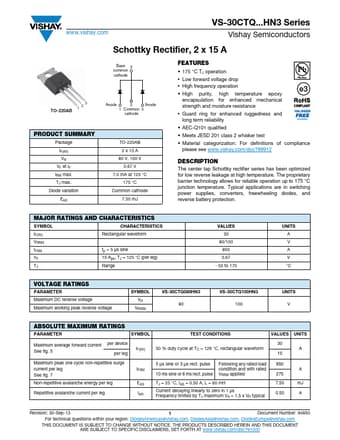

www.vishay.com VS-30CTQHN3 Series Vishay Semiconductors Schottky Rectifier, 2 x 15 A Base 2 common cathode 1 23 TO-220AB Anode 2 Anode 1 Common.
The center tap Schottky rectifier series has been optimized for low reverse leakage at high temperature.

VS-30CTQ100HN3 Features

* 175 °C TJ operation
* Low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability Availabl

VS-30CTQ100HN3 Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) Rectangular waveform VRRM IFSM tp = 5 μs sine VF 15 Apk, TJ = 125 °C (per leg) TJ Range VALUES 30 80/100 850 0.67 - 55 to 175 U

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: VS-30CTQ100HN3, VS-30CTQ080HN3. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS-30CTQ100HN3, VS-30CTQ080HN3
Manufacturer
Vishay ↗
File Size
145.59 KB
Datasheet
VS-30CTQ080HN3-Vishay.pdf
Description
Schottky Rectifier
Note
This datasheet PDF includes multiple part numbers: VS-30CTQ100HN3, VS-30CTQ080HN3.
Please refer to the document for exact specifications by model.
