The VS-30CTQ100SPbF by Vishay is a High Performance Schottky Rectifier. Below is the official datasheet preview.

Datasheet Details

Part number	VS-30CTQ100SPbF, VS-30CTQ080SPbF
Manufacturer	Vishay
File Size	152.24 KB
Description	High Performance Schottky Rectifier
Datasheet	VS-30CTQ080SPbF-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: VS-30CTQ100SPbF, VS-30CTQ080SPbF. Please refer to the document for exact specifications by model.

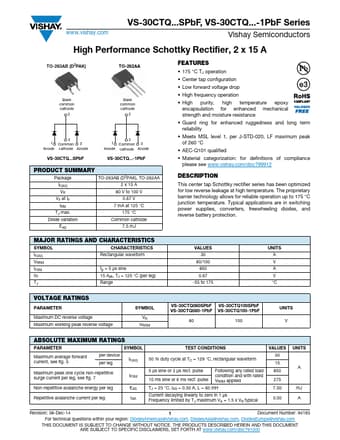

Additional preview pages of the VS-30CTQ100SPbF datasheet.

This center tap Schottky rectifier series has been optimized for low reverse leakage at high temperature.

175 °C TJ operation.
Center tap configuration.
Low forward voltage drop.
High frequency operation.
High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance.
Guard ring for enhanced ruggedness and long term reliability.
Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C.
AEC-Q101 qualified.
Material categorization: for definitions of compliance please see ww.
