VS-30CTQ100PbF, VS-30CTQ080PbF, Schottky Rectifier

VS-30CTQPbF Series, VS-30CTQ-N3 Series www.vishay.com Vishay Semiconductors Schottky Rectifier, 2 x 15 A Base 2 common cathode TO-220AB Anode 2.
The center tap Schottky rectifier series has been optimized for low reverse leakage at high temperature.

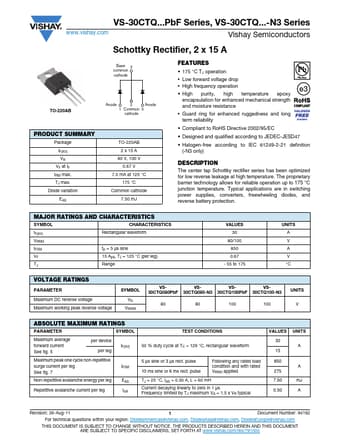

datasheet Preview Page 1 from Datasheet4u.com

VS-30CTQ080PbF-Vishay.pdf

VS-30CTQ100PbF Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-30CTQ100PbF, VS-30CTQ080PbF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VS-30CTQ100PbF, VS-30CTQ080PbF

Manufacturer:

Vishay ↗

File Size:

167.88 KB

Description:

Schottky Rectifier

Note:

This datasheet PDF includes multiple part numbers: VS-30CTQ100PbF, VS-30CTQ080PbF.
Please refer to the document for exact specifications by model.

Features

* 175 °C TJ operation
* Low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability
* Co

Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) VRRM IFSM Rectangular waveform tp = 5 μs sine VF 15 Apk, TJ = 125 °C (per leg) TJ Range VALUES 30 80/100 850 0.67 - 55 to 175 UNI
