VS-5EWH06FN-M3 Datasheet - Vishay

Hyperfast Rectifier

VS-5EWH06FN-M3 Features

* Hyperfast recovery time, reduced Qrr and soft recovery

* 175 °C maximum operating junction temperature

* For PFC CRM/CCM operation

* Low forward voltage drop

* Low leakage current

* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C

VS-5EWH06FN-M3 General Description

/ APPLICATIONS State of the art hyperfast recovery rectifiers designed with optimized performance of forward voltage drop, hyperfast recovery time, and soft recovery. The planar structure and the platinum doped life time control guarantee the best overall performance, ruggedness and reliability cha.

VS-5EWH06FN-M3 Datasheet (159.23 KB)

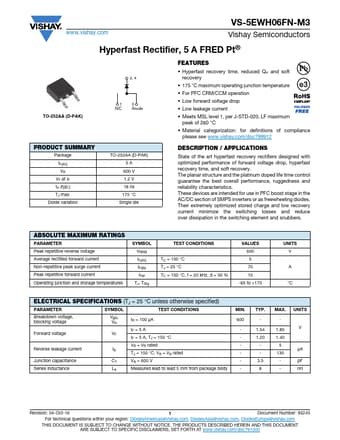

Preview of VS-5EWH06FN-M3 PDF

Datasheet Details

Part number:

VS-5EWH06FN-M3

Manufacturer:

Vishay ↗

File Size:

159.23 KB

Description:

Hyperfast rectifier.
www.vishay.com VS-5EWH06FN-M3 Vishay Semiconductors Hyperfast Rectifier, 5 A FRED Pt® TO-252AA (D-PAK) 2, 4 13 N/C Anode PRODUCT SUMMARY Package .
