VS-MBR1035-N3, VS-MBR1035PbF Datasheet - Vishay

VS-MBR1035-N3 Schottky Rectifier

This Schottky rectifier has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 150 °C junction temperature. Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery prote.

VS-MBR1035-N3 Features

* Base cathode 2

* TO-220AC 1 Cathode 3 Anode

* PRODUCT SUMMARY Package IF(AV) VR VF at IF IRM max. TJ max. Diode variation EAS TO-220AC 10 A 35 V, 45 V 0.57 V 15 mA at 125 °C 150 °C Single die 8 mJ 150 °C TJ operation

VS-MBR1035PbF-Vishay.pdf

This datasheet PDF includes multiple part numbers: VS-MBR1035-N3, VS-MBR1035PbF. Please refer to the document for exact specifications by model.

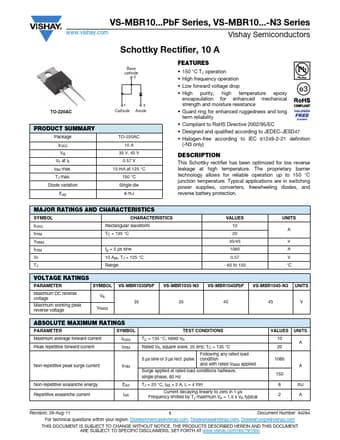

VS-MBR1035-N3 Datasheet Preview Page 2 VS-MBR1035-N3 Datasheet Preview Page 3

Datasheet Details

Part number:

VS-MBR1035-N3, VS-MBR1035PbF

Manufacturer:

Vishay ↗

File Size:

150.04 KB

Description:

Schottky rectifier.

Note:

This datasheet PDF includes multiple part numbers: VS-MBR1035-N3, VS-MBR1035PbF.
Please refer to the document for exact specifications by model.
