VS-MBR1045PbF, VS-MBR1035PbF, Schottky Rectifier

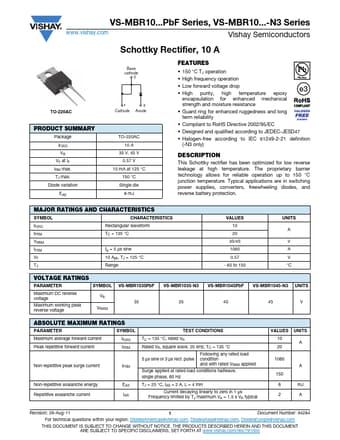

VS-MBR10PbF Series, VS-MBR10-N3 Series www.vishay.com Vishay Semiconductors Schottky Rectifier, 10 A .
This Schottky rectifier has been optimized for low reverse leakage at high temperature.

datasheet Preview Page 1 from Datasheet4u.com

VS-MBR1035PbF-Vishay.pdf

VS-MBR1045PbF Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-MBR1045PbF, VS-MBR1035PbF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VS-MBR1045PbF, VS-MBR1035PbF

Manufacturer:

Vishay ↗

File Size:

150.04 KB

Description:

Schottky Rectifier

Note:

This datasheet PDF includes multiple part numbers: VS-MBR1045PbF, VS-MBR1035PbF.
Please refer to the document for exact specifications by model.

Features

* Base cathode 2
* TO-220AC 1 Cathode 3 Anode
* PRODUCT SUMMARY Package IF(AV) VR VF at IF IRM max. TJ max. Diode variation EAS TO-220AC 10 A 35 V, 45 V 0.57 V 15 mA at 125 °C 150 °C Single die 8 mJ 150 °C TJ operation

Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL IF(AV) IFRM VRRM IFSM VF TJ tp = 5 μs sine 10 Apk, TJ = 125 °C Range CHARACTERISTICS Rectangular waveform TC = 135 °C VALUES 10 20 35/45 1060 0.57 - 65 to 150 U
