VS-MBR2080CTG-1PbF Datasheet - Vishay

Schottky Rectifier

VS-MBR2080CTG-1PbF Features

* 150 °C TJ operation

* Center tap D2PAK and TO-262 packages

* Low forward voltage drop

* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance

* High frequency operation

* Guard ring enhanced rugged

VS-MBR2080CTG-1PbF General Description

This center tap Schottky rectifier has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 150 °C junction temperature. Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse ba.

VS-MBR2080CTG-1PbF Datasheet (161.76 KB)

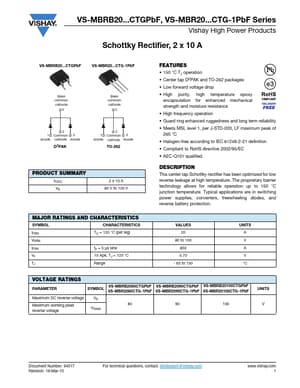

Preview of VS-MBR2080CTG-1PbF PDF

Datasheet Details

Part number:

VS-MBR2080CTG-1PbF

Manufacturer:

Vishay ↗

File Size:

161.76 KB

Description:

Schottky rectifier.
VS-MBRB20CTGPbF, VS-MBR20CTG-1PbF Series Vishay High Power Products Schottky Rectifier, 2 x 10 A VS-MBRB20CTGPbF VS-MBR20CTG-1PbF Base common catho.
