* Popular D-PAK outline
* Small foot print, surface mountable
* Low forward voltage drop
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliability
* Compliant to RoHS Directive 2002/95/EC
* Meets MSL level 1, per

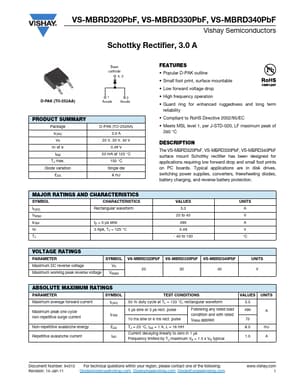

VS-MBRD330PbF Datasheet (131.72 KB)
VS-MBRD330PbF
131.72 KB
Schottky rectifier.
VS-MBRD320PbF, VS-MBRD330PbF, VS-MBRD340PbF
Vishay Semiconductors
Schottky Rectifier, 3.0 A
Base cathode
4, 2
D-PAK (TO-252AA)
1 Anode
3 Anode
PR.
