VS-MBRD650CTPbF

Schottky Rectifier

VS-MBRD650CTPbF Features

* Popular D-PAK outline

* Center tap configuration

* Small foot print, surface mountable

* Low forward voltage drop

* High frequency operation

* Guard ring for enhanced ruggedness and long term reliability

* Compliant to RoHS Directive 2002/95/

VS-MBRD650CTPbF General Description

The VS-MBRD650CTPbF, VS-MBRD660CTPbF surface mount, center tap, Schottky rectifier series has been designed for applications requiring low forward drop and small foot prints on PC boards. Typical applications are in disk drives, switching power supplies, converters, freewheeling diodes, battery char.

VS-MBRD650CTPbF Datasheet (146.99 KB)

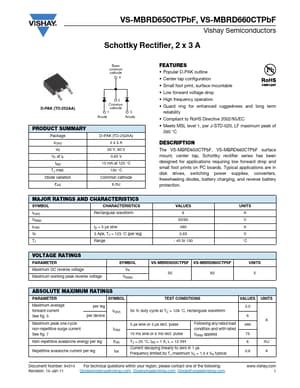

Preview of VS-MBRD650CTPbF PDF

Datasheet Details

Part number:

VS-MBRD650CTPbF

Manufacturer:

Vishay ↗

File Size:

146.99 KB

Description:

Schottky rectifier.
VS-MBRD650CTPbF, VS-MBRD660CTPbF Vishay Semiconductors Schottky Rectifier, 2 x 3 A Base common cathode 4 D-PAK (TO-252AA) PRODUCT SUMMARY Package IF.
