VS-STPS1045BPbF Schottky Rectifier

VS-STPS1045BPbF Description

VS-STPS1045BPbF Vishay Semiconductors Schottky Rectifier, 10 A Base cathode 4, 2 D-PAK (TO-252AA) 1 Anode 3 Anode PRODUCT SUMMARY Package IF(AV) .
The VS-STPS1045BPbF surface mount Schottky rectifier has been designed for applications requiring low forward drop and small foot prints on PC board.

VS-STPS1045BPbF Features

* Popular D-PAK outline
* Small foot print, surface mountable
* Low forward voltage drop
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliability
* Compliant to RoHS Directive 2002/95/EC
* Meets MSL level 1, per

VS-STPS1045BPbF Applications

* requiring low forward drop and small foot prints on PC board. Typical applications are in disk drives, switching power supplies, converters, freewheeling diodes, battery charging, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) VRRM IFSM VF TJ Rec

📥 Download Datasheet

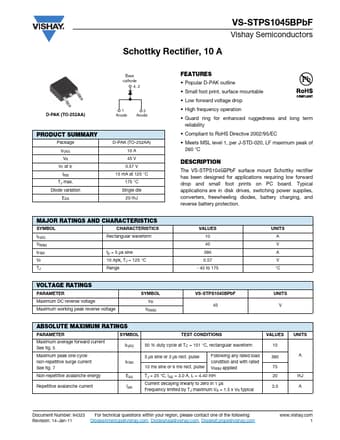

Preview of VS-STPS1045BPbF PDF
