VS-STPS20L15G-M3

High Performance Schottky Rectifier

VS-STPS20L15G-M3 Features

* 125 °C TJ operation (VR < 5 V)

* Center tap module

* Optimized for OR-ing applications

* Ultralow forward voltage drop

* High frequency operation

* Guard ring for enhanced ruggedness and long term reliability

* High purity, high temperature e

VS-STPS20L15G-M3 General Description

The Schottky rectifier module has been optimized for ultra low forward voltage drop specifically for the OR-ing of parallel power supplies. The proprietary barrier technology allows for reliable operation up to 125 °C junction temperature. Typical applications are in parallel switching power supplie.

VS-STPS20L15G-M3 Datasheet (149.40 KB)

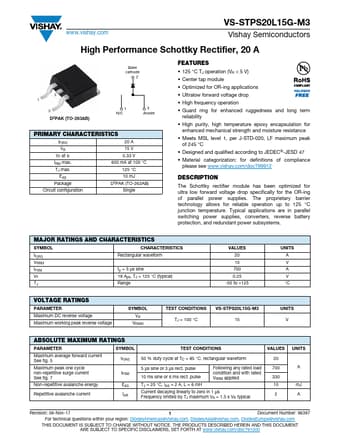

Preview of VS-STPS20L15G-M3 PDF

Datasheet Details

Part number:

VS-STPS20L15G-M3

Manufacturer:

Vishay ↗

File Size:

149.40 KB

Description:

High performance schottky rectifier.
www.vishay.com VS-STPS20L15G-M3 Vishay Semiconductors High Performance Schottky Rectifier, 20 A Base cathode 2 2 1 3 D2PAK (TO-263AB) 1 N/C 3 An.
