VS-STPS20L15GPbF High Performance Schottky Rectifier

VS-STPS20L15GPbF Description

VS-STPS20L15GPbF www.vishay.com Vishay Semiconductors High Performance Schottky Rectifier, 20 A .
The Schottky rectifier module has been optimized for ultralow forward voltage drop specifically for the OR-ing of parallel power supplies.

VS-STPS20L15GPbF Features

* Base cathode 2
* 125 °C TJ operation (VR < 5 V)
* Center tap module

VS-STPS20L15GPbF Applications

* Ultralow forward voltage drop
* High frequency operation TO-263AB (D2PAK) N/C 1 3 Anode
* Guard ring for enhanced ruggedness and long term reliability
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance P

📥 Download Datasheet

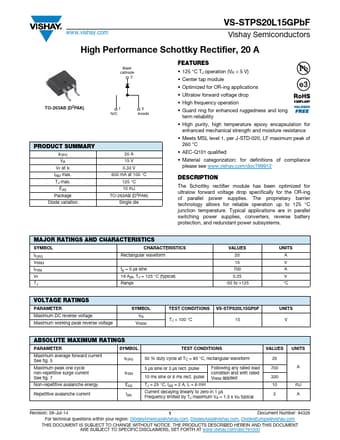

Preview of VS-STPS20L15GPbF PDF
datasheet Preview Page 2 datasheet Preview Page 3
