VS-STPS1L30UPbF Schottky Rectifier

VS-STPS1L30UPbF Description

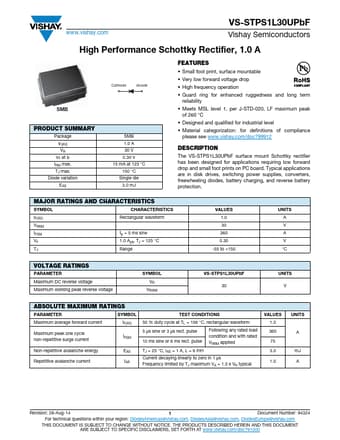

www.vishay.com VS-STPS1L30UPbF Vishay Semiconductors High Performance Schottky Rectifier, 1.0 A Cathode Anode SMB PRODUCT SUMMARY Package IF(AV) V.
The VS-STPS1L30UPbF surface mount Schottky rectifier has been designed for applications requiring low forward drop and small foot prints on PC board.

VS-STPS1L30UPbF Features

* Small foot print, surface mountable
* Very low forward voltage drop
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliability
* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
* Designed and qualified for i

VS-STPS1L30UPbF Applications

* requiring low forward drop and small foot prints on PC board. Typical applications are in disk drives, switching power supplies, converters, freewheeling diodes, battery charging, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) Rectangular wavefor
