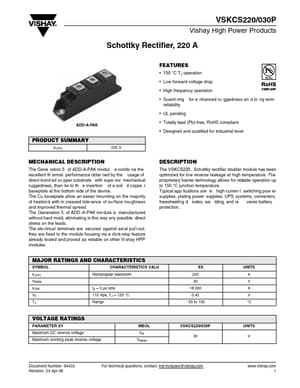

VSKCS220-030P Datasheet - Vishay

Schottky Rectifier

VSKCS220-030P Features

* 150 °C TJ operation

* Low forward voltage drop

* High frequency operation

* Guard ring reliability

* UL pending ADD-A-PAK for e nhanced ru ggedness an d lo ng term

* Totally lead (Pb)-free, RoHS compliant

* Designed and qualified for indust

VSKCS220-030P General Description

The Gene ration 5 of ADD-A-PAK modul e combi ne the excellent th ermal performance obtai ned by the usage of direct bond ed co pper substrate with supe rior mechanical ruggedness, than ks to th e insertion of a soli d coppe r baseplate at the bottom side of the device. The Cu ba seplate allow an eas.

VSKCS220-030P Datasheet (233.17 KB)
