VSKCS400-045 Schottky Rectifier

VSKCS400-045 Description

VSKCS400/045 Vishay Semiconductors ADD-A-PAK Generation VII Power Modules Schottky Rectifier, 400 A .
MECHANICAL DESCRIPTION The ADD-A-PAK generation VII, new generation of ADD-A-PAK module, combines the excellent thermal performances obtained by the u.

VSKCS400-045 Features

* 150 °C TJ operation
* Low forward voltage drop
* High frequency operation
* Low thermal resistance
* UL approved file E78996
* Compliant to RoHS Directive 2002/95/EC
* Designed and qualified for industrial level ADD-A-PAK BENEFITS PRODUCT SU

VSKCS400-045 Applications

* are in high current switching power supplies, plating power supplies, UPS systems, converters, freewheeling diodes, welding, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL IF(AV) VRRM IFSM VF TJ tp = 5 μs sine 200 Apk, TJ = 125 °C Range CHARACTERISTICS Rectangular waveform

📥 Download Datasheet

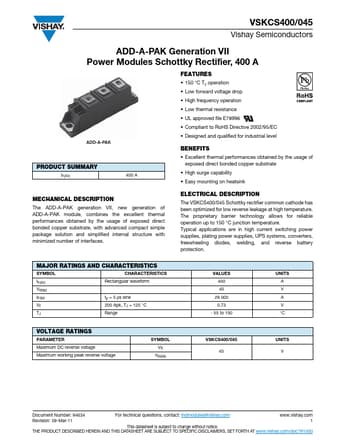

Preview of VSKCS400-045 PDF
datasheet Preview Page 2 datasheet Preview Page 3
