VSKCS408-060 Schottky Rectifier

VSKCS408-060 Description

VSKCS408/060 Vishay Semiconductors ADD-A-PAK Generation VII Power Modules Schottky Rectifier, 400 A .
MECHANICAL DESCRIPTION The ADD-A-PAK generation VII, new generation of ADD-A-PAK module, combines the excellent thermal performances obtained by the u.

VSKCS408-060 Features

* 150 °C TJ operation
* Low forward voltage drop
* High frequency operation
* Low thermal resistance
* UL approved file E78996
* Compliant to RoHS Directive 2002/95/EC
* Designed and qualified for industrial level ADD-A-PAK BENEFITS

VSKCS408-060 Applications

* are in high current switching power supplies, plating power supplies, UPS systems, converters, freewheeling diodes, welding, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL IF(AV) VRRM IFSM VF TJ tp = 5 μs sine 200 Apk, TJ = 125 °C Range CHARACTERISTICS Rectangular waveform

📥 Download Datasheet

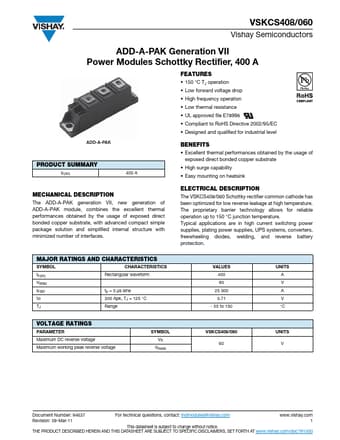

Preview of VSKCS408-060 PDF
datasheet Preview Page 2 datasheet Preview Page 3
