VSKCS440-030 Schottky Rectifier

VSKCS440-030 Description

VSKCS440/030 Vishay Semiconductors ADD-A-PAK Generation VII Power Modules Schottky Rectifier, 440 A .
MECHANICAL DESCRIPTION The ADD-A-PAK generation VII, new generation of ADD-A-PAK module, combines the excellent thermal performances obtained by the u.

VSKCS440-030 Features

* 150 °C TJ operation
* Low forward voltage drop
* High frequency operation
* Low thermal resistance
* UL approved file E78996
* Compliant to RoHS Directive 2002/95/EC
* Designed and qualified for industrial level ADD-A-PAK BENEFITS PRODUCT SU

VSKCS440-030 Applications

* are in high current switching power supplies, plating power supplies, UPS systems, converters, freewheeling diodes, welding, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL IF(AV) VRRM IFSM VF TJ tp = 5 μs sine 200 Apk, TJ = 125 °C Range CHARACTERISTICS Rectangular waveform

📥 Download Datasheet

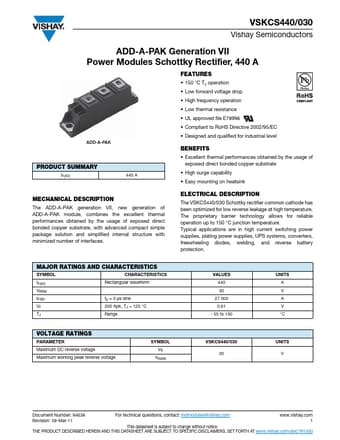

Preview of VSKCS440-030 PDF
datasheet Preview Page 2 datasheet Preview Page 3
