VSMY2853RG Datasheet - Vishay

High Speed Infrared Emitting Diodes

VSMY2853RG Features

* Package type: surface mount

* Package form: GW, RGW

* Dimensions (L x W x H in mm): 2.3 x 2.3 x 2.55

* Peak wavelength: λp = 850 nm

* High reliability

* High radiant power 22689

* Very high radiant intensity

* Angle of half intensit

VSMY2853RG General Description

As part of the portfolio, the VSMY2853 series are infrared, 850 nm emitting diodes based on GaAlAs surface emitter chip technology with extreme high radiant intensities, high optical power and high speed, molded in clear, untinted plastic packages (with lens) for surface mounting (SMD). APPLICATION.

VSMY2853RG Datasheet (263.61 KB)

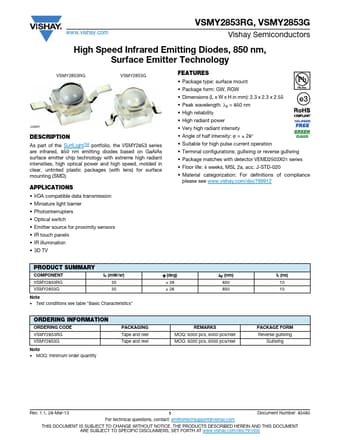

Preview of VSMY2853RG PDF

Datasheet Details

Part number:

VSMY2853RG

Manufacturer:

Vishay ↗

File Size:

263.61 KB

Description:

High speed infrared emitting diodes.
VSMY2853RG, VSMY2853G www.vishay.com Vishay Semiconductors High Speed Infrared Emitting Diodes, 850 nm, Surface Emitter Technology VSMY2853RG VSMY28.
