VSMY2850G - High Speed Infrared Emitting Diodes

Vishay Siliconix

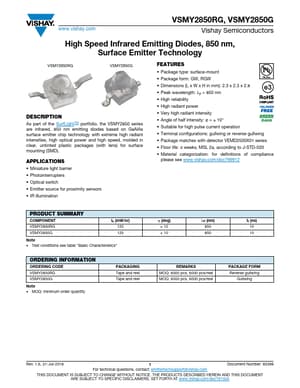

VSMY2850G Datasheet Preview — Preview of VSMY2850G PDF

Datasheet Details

Part number	VSMY2850G
Manufacturer	Vishay ↗ Siliconix
File Size	154.68 KB
Description	High Speed Infrared Emitting Diodes
Datasheet	VSMY2850G_VishaySiliconix.pdf

VSMY2850G Product details

Description

As part of the SurfLightTM portfolio, the VSMY2850 series are infrared, 850 nm emitting diodes based on GaAlAs surface emitter chip technology with extreme high radiant intensities, high optical power and high speed, molded in clear, untinted plastic packages (with lens) for surface mounting (SMD). Miniature light barrier Photointerrupters Optical switch Emitter source for proximity sensors IR illumination

Features

Package type: surface-mount.
Package form: GW, RGW.
Dimensions (L x W x H in mm): 2.3 x 2.3 x 2.8.
Peak wavelength: λp = 850 nm.
High reliability.
High radiant power.
Very high radiant intensity.
Angle of half intensity: ϕ = ± 10°.
Suitable for high pulse current operation.
Terminal configurations: gullwing or reverse gullwing.
Package matches with detector VEMD2500X01 series.
Floor life:.
