VSC7125 - 1.0625 Gbits/sec Fibre Channel Transceiver

VSC7125 Description

Data Sheet VSC7125 VITESSE SEMICONDUCTOR CORPORATION 1.0625 Gbits/sec Fibre Channel Transceiver .
The VSC7125 is a full-speed Fibre Channel Transceiver optimized for Disk Drive and other space constrained applications.

VSC7125 Features

* ANSI X3T11 Fibre Channel Compatible 1.0625 Gbps Full-duplex Transceiver
* 10 Bit TTL Interface for Transmit and Receive Data
* Monolithic Clock Synthesis and Clock Recovery - No External Components
* 106.25 MHz TTL Reference Clock
* Low Power Operation - 6

VSC7125 Applications

* 64 Pin, 10mm or 14mm PQFP

📥 Download Datasheet

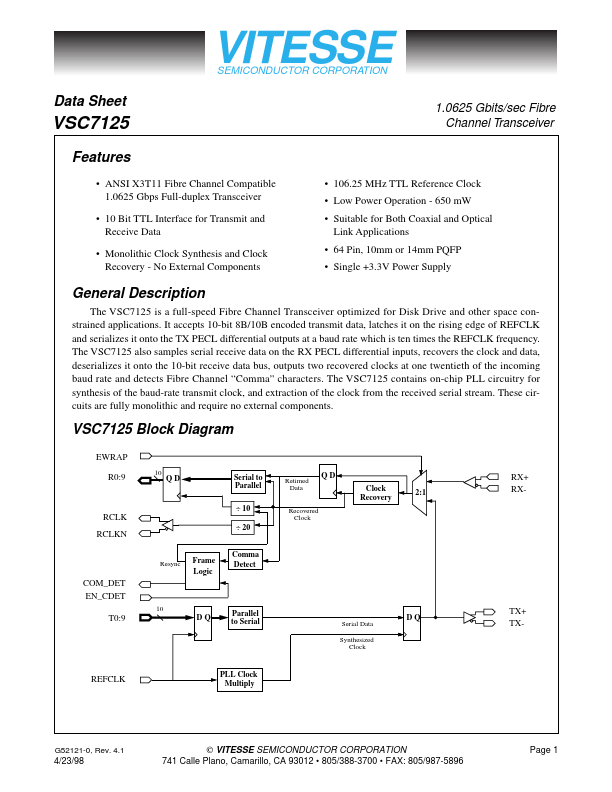

Preview of VSC7125 PDF

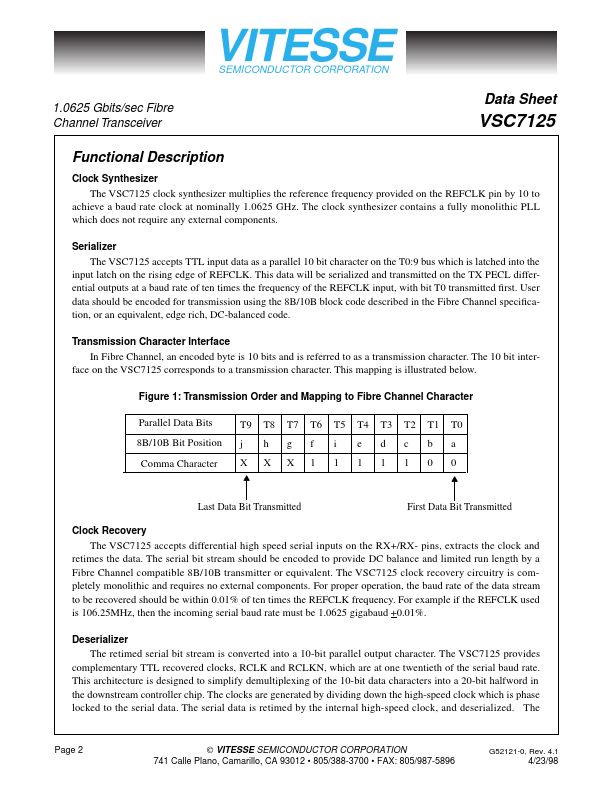

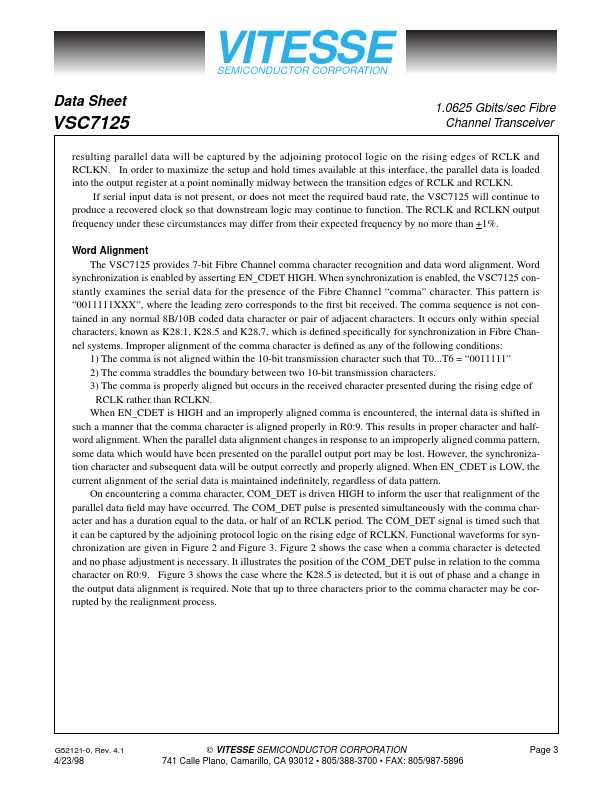

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VSC7125
Manufacturer
Vitesse Semiconductor
File Size
123.46 KB
Datasheet
VSC7125_ETC.pdf
Description
1.0625 Gbits/sec Fibre Channel Transceiver
