VSC7132 - Link Replicator

VSC7132 Description

® VITESSE SEMICONDUCTOR CORPORATION Preliminary Data Sheet VSC7132 Link Replicator for Fibre Channel, Gigabit Ethernet and HDTV .
The VSC7132 is a high performance serial Link Replicator for applications in Fibre Channel (1.

VSC7132 Features

* Replicates Fibre Channel, Gigabit Ethernet and HDTV Links
* T11 Fibre Channel Compliant at 1.0625Gb/s
* IEEE802.3z Gigabit Ethernet Compliant at 1.25Gb/s
* SMPTE-292M Compliant at 1.485Gb/s
* No External Components Required
* 0.4W Maximum Power Diss

VSC7132 Applications

* in Fibre Channel (1.0625Gb/s), Gigabit Ethernet (1.25Gb/s) and HDTV (1.485Gb/s). A serializer/deserializer, such as the VSC7123, would normally be connected to the IN+/- and OUT+/- ports in order to provide duplicate links on the IN0/OUT0 and IN1/OUT1 ports. A popular application is for Line Cards u

📥 Download Datasheet

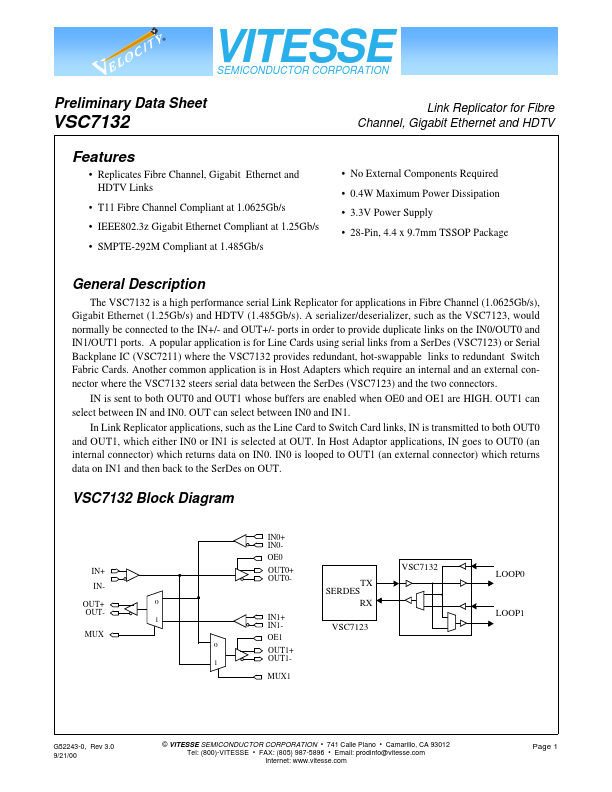

Preview of VSC7132 PDF

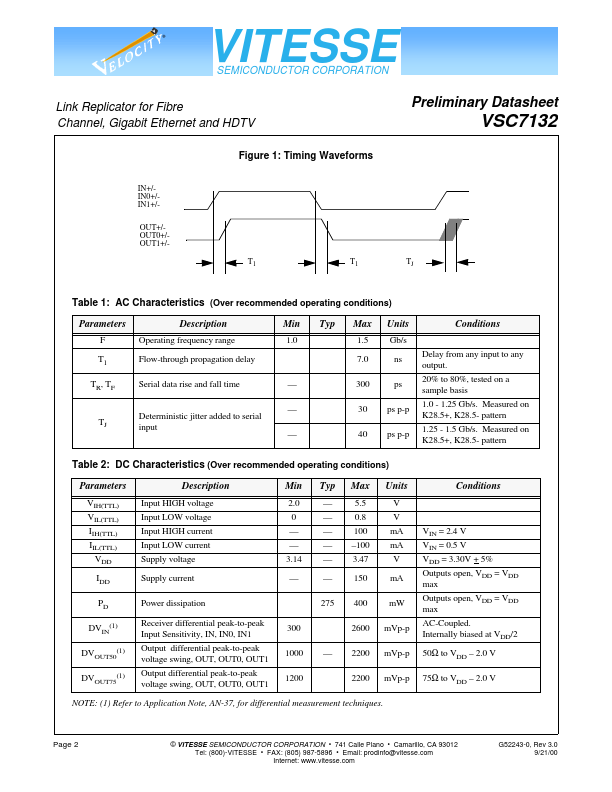

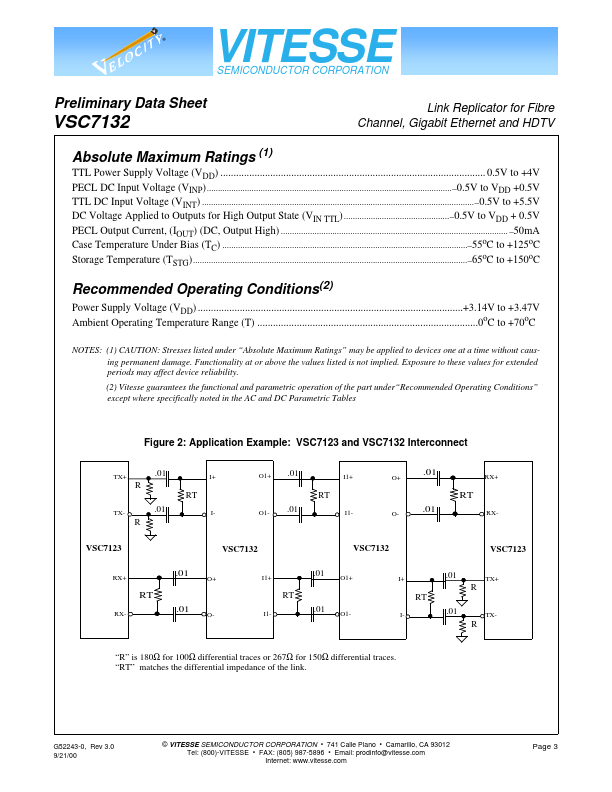

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VSC7132
Manufacturer
Vitesse Semiconductor
File Size
101.68 KB
Datasheet
VSC7132_ETC.pdf
Description
Link Replicator
