VSC7135 Datasheet - Vitesse Semiconductor

Ethernet Transceiver

VSC7135 Features

* Gigabit Ethernet Transceiver @ 1.25Gb/s

* Compliant to IEEE 802.3Z PMA

* TTL Interface Compatible to PMA-TBI

* Monolithic Clock Synthesis and Clock Recovery - No External Components

* 125MHz TTL Reference Clock 1.25Gbits/sec Gigabit Ethernet Transceiver

VSC7135 General Description

The VSC7135 is a 1.25Gb/s Ethernet Transceiver optimized for Gigabit Ethernet or 1000Base-X applications. It accepts 10-bit 8B/10B encoded transmit data, latches it on the rising edge of REFCLK and serializes it onto the TX PECL differential outputs at a baud rate which is ten times the REFCLK frequ.

VSC7135 Datasheet (113.27 KB)

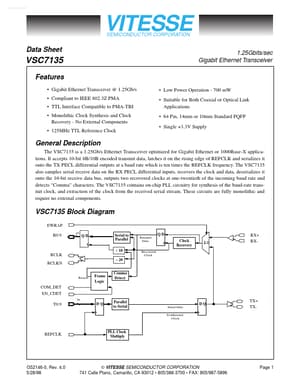

VSC7135 Datasheet Preview — Preview of VSC7135 PDF

Datasheet Details

Part number:

VSC7135

Manufacturer:

Vitesse Semiconductor

File Size:

113.27 KB

Description:

Ethernet transceiver.
