VSC7133 Datasheet - Vitesse Semiconductor

VSC7133 10-bit Transceiver

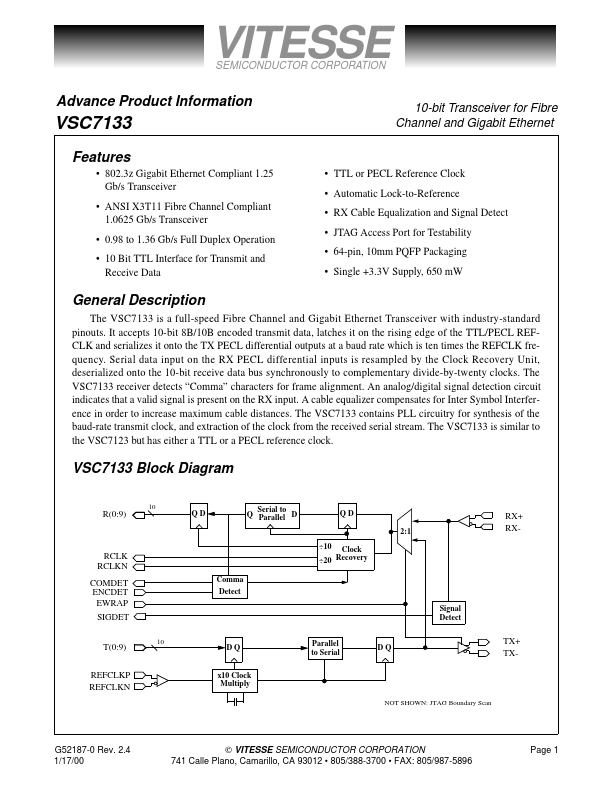

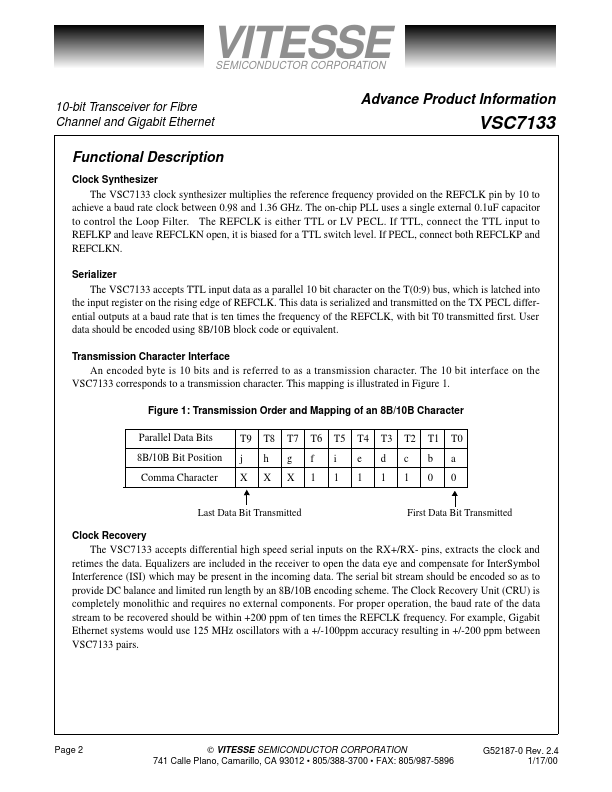

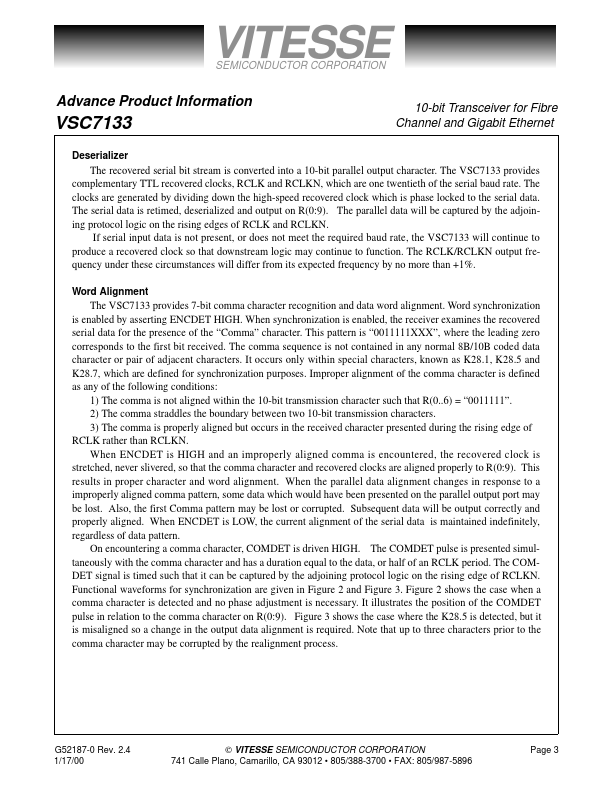

The VSC7133 is a full-speed Fibre Channel and Gigabit Ethernet Transceiver with industry-standard pinouts. It accepts 10-bit 8B/10B encoded transmit data, latches it on the rising edge of the TTL/PECL REFCLK and serializes it onto the TX PECL differential outputs at a baud rate which is ten times th.

VSC7133 Features

* 802.3z Gigabit Ethernet Compliant 1.25 Gb/s Transceiver

* ANSI X3T11 Fibre Channel Compliant 1.0625 Gb/s Transceiver

* 0.98 to 1.36 Gb/s Full Duplex Operation

* 10 Bit TTL Interface for Transmit and Receive Data

* TTL or PECL Reference Clock

* Autom

VSC7133_ETC.pdf
