WTC401SPI Datasheet - WINCOM

WTC401SPI 4 keys + 1 roller slider capacitive touch sensing chip

Capacitive sensor (pulley sense element) interface 8 Capacitive sensor (pulley sense element) interface 9 Capacitive sensor (pulley sense element) interface 10 Capacitive sensor (pulley sense element) interface 11 Capacitive sensor (pulley sense element) interface 12 Capacitive sensor (pulley sense .
Professional Touch Sensor Chip Supplier WTC401SPI http://www.wincomtech.com WTC401SPI 4 keys + 1 roller slider capacitive touch sensing chip Specification (V1. 1) 1. Product Overview WTC401SPI has 4 keys and 1 roller/slider. Through the output key value of the SPI interface and the roller of finger touch, position data is 0 ~ 7FH, total 128 pieces. SSOP24A encapsulation 2. Ordering information The WTC401SPI is divided into the sleeping mode and non-sleeping mode, which can be distinguished fr.

WTC401SPI Datasheet (245.18 KB)

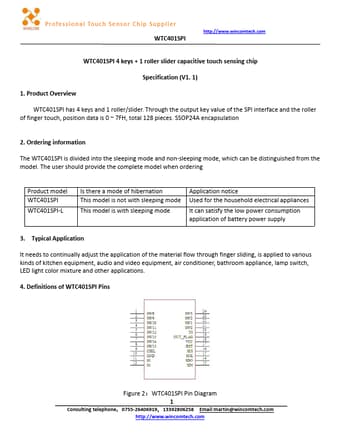

Preview of WTC401SPI PDF
WTC401SPI Datasheet Preview Page 2 WTC401SPI Datasheet Preview Page 3

Datasheet Details

Part number:

WTC401SPI

Manufacturer:

WINCOM

File Size:

245.18 KB

Description:

4 keys + 1 roller slider capacitive touch sensing chip.
