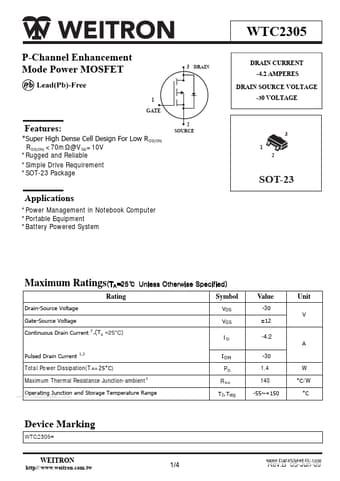

WTC2305 Datasheet, Mosfet, Weitron Technology

WTC2305 Features

• Mosfet
• Super High Dense Cell Design For Low R DS(ON) R DS(ON) <70m Ω @V GS =10V
• Rugged and Reliable
• Simple Drive Requirement
• SOT-23 Package SOURCE 2 3 1

PDF File Details

Part number:

WTC2305

Manufacturer:

Weitron Technology

File Size:

2.25MB

Download:

📄 Datasheet

Description:

Enhancement mode power mosfet.

WTC2305 Application

• Applications
• Power Management in Notebook Computer
• Portable Equipment
• Battery Powered System Maximum Ratings(TA=25℃ Rati
