1N5711W SURFACE MOUNT SCHOTTKY BARRIER DIODE

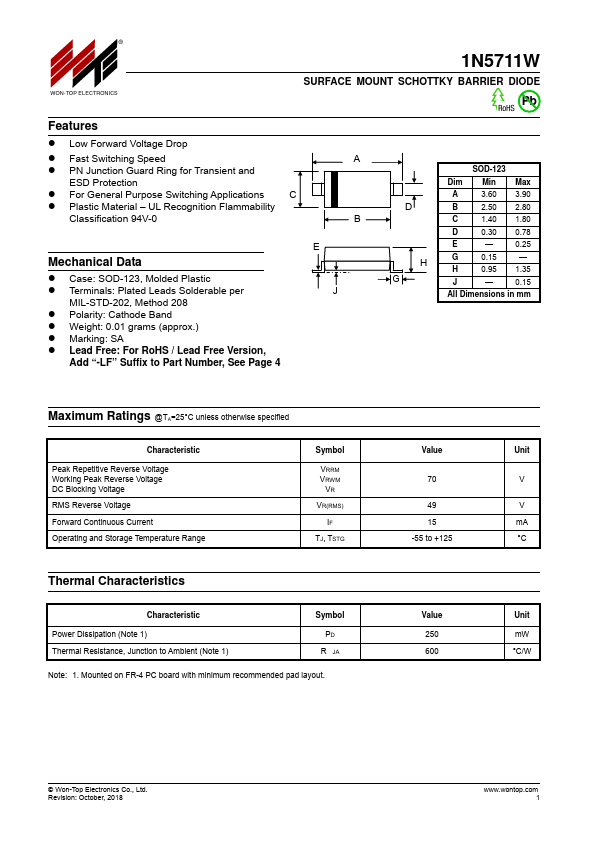

📥 Download Datasheet Datasheet Preview Page 1

Description

® WON-TOP ELECTRONICS 1N5711W SURFACE MOUNT SCHOTTKY BARRIER DIODE Pb .

📥 Download Datasheet

Preview of 1N5711W PDF

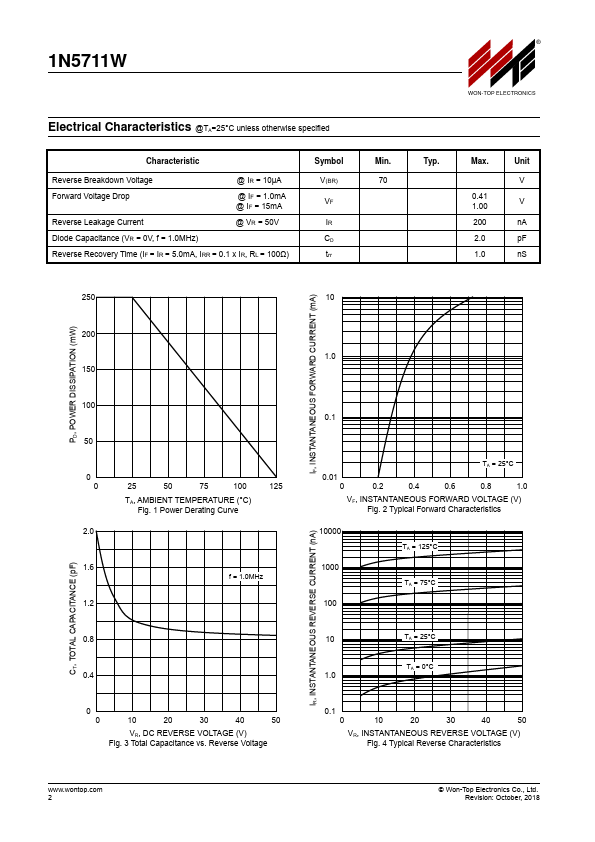

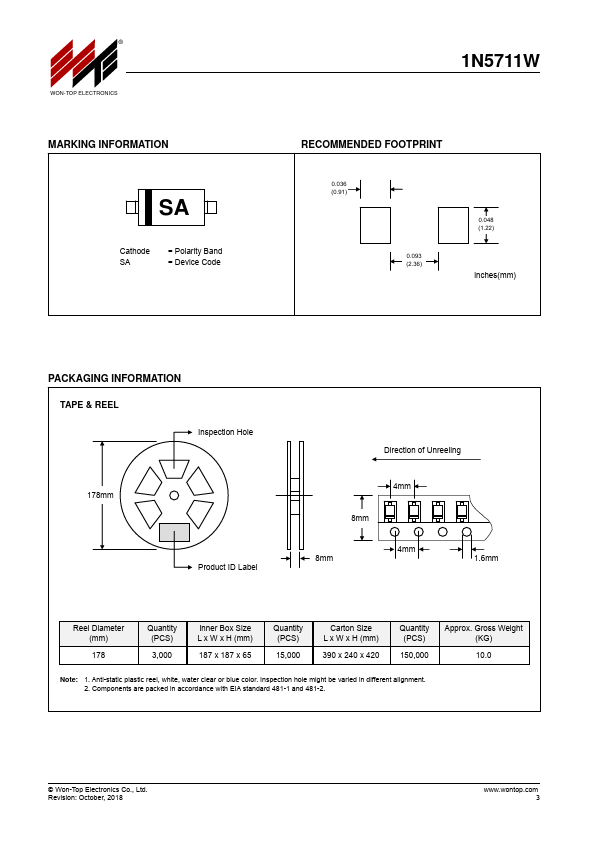

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
1N5711W
Manufacturer
WON-TOP
File Size
80.16 KB
Datasheet
1N5711W-WONTOP.pdf
Description
SURFACE MOUNT SCHOTTKY BARRIER DIODE

Features

* Low Forward Voltage Drop
* Fast Switching Speed A
* PN Junction Guard Ring for Transient and ESD Protection

Applications

* C
* Plastic Material
* UL Recognition Flammability Classification 94V-0 B Mechanical Data
* Case: SOD-123, Molded Plastic
* Terminals: Plated Leads Solderable per MIL-STD-202, Method 208
* Polarity: Cathode Band
* Weight: 0.01 grams (approx. )
* Marking: SA
