PFW2501, PFW2500-WON - WASHER LEAD PRESS-FIT DIODE

WON-TOP

📥 Download Datasheet

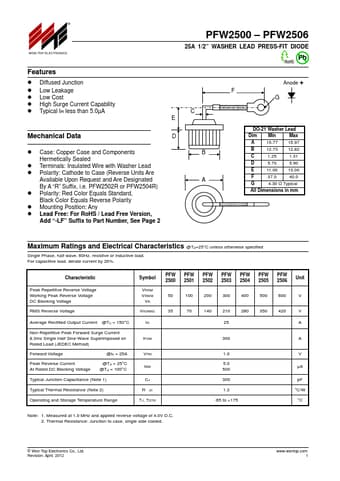

PFW2501 Datasheet Preview — This datasheet PDF includes multiple part numbers: PFW2501, PFW2500-WON. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

Datasheet Details

Part number: PFW2501, PFW2500-WON
Manufacturer: WON-TOP
File Size: 29.50 KB
Datasheet: PFW2500-WON-TOP.pdf
Description: WASHER LEAD PRESS-FIT DIODE
Note: This datasheet PDF includes multiple part numbers: PFW2501, PFW2500-WON.
Please refer to the document for exact specifications by model.

PFW2501 Product details

Features

Diffused Junction.
Low Leakage.
Low Cost.
High Surge Current Capability.
Typical IR less than 5.0µA Mechanical Data.
Case: Copper Case and Components Hermetically Sealed.
Terminals: Insulated Wire with Washer Lead.
Polarity: Cathode to Case (Reverse Units Are Available Upon Request and Are Designated By A “R” Suffix, i. e. PFW2502R or PFW2504R).
Polarity: Red Color Equals Standard, Black Color Equals Reverse Polarity.
Mounting Position: Any.
