S3J, S3J-WON 3.0A SURFACE MOUNT GLASS PASSIVATED STANDARD DIODE

WON-TOP

S3J Description

® WON-TOP ELECTRONICS S3A * S3M 3.0A SURFACE MOUNT GLASS PASSIVATED STANDARD DIODE Pb .

S3J Features

* Glass Passivated Die Construction
* Ideally Suited for Automatic Assembly
* Low Forward Voltage Drop
* Surge Overload Rating to 100A Peak
* Low Power Loss
* Built-in Strain Relief
* Plastic Case Material has UL Flammability Classification Rating 94V-0 A C B F HG E D

📥 Download Datasheet

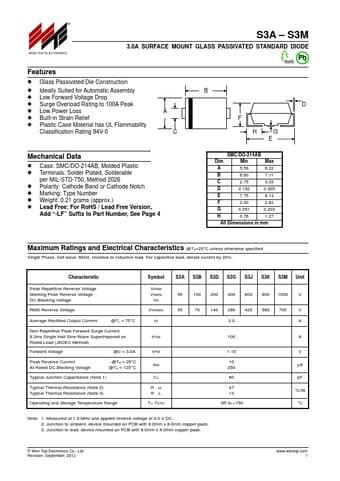

S3J Datasheet Preview — This datasheet PDF includes multiple part numbers: S3J, S3J-WON. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: S3J, S3J-WON
Manufacturer: WON-TOP
File Size: 34.76 KB
Datasheet: S3J-WON-TOP.pdf
Description: 3.0A SURFACE MOUNT GLASS PASSIVATED STANDARD DIODE
Note: This datasheet PDF includes multiple part numbers: S3J, S3J-WON.
Please refer to the document for exact specifications by model.
