SB120, SB120-WON 1.0A SCHOTTKY BARRIER DIODE

SB120 Description

® WON-TOP ELECTRONICS .

SB120 Features

* Schottky Barrier Chip
* Guard Ring for Transient and ESD Protection
* Surge Overload Rating to 30A Peak
* Low Power Loss, High Efficiency
* Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes Mechanical Data
* Case: DO-41, Molded Plastic

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SB120, SB120-WON. Please refer to the document for exact specifications by model.

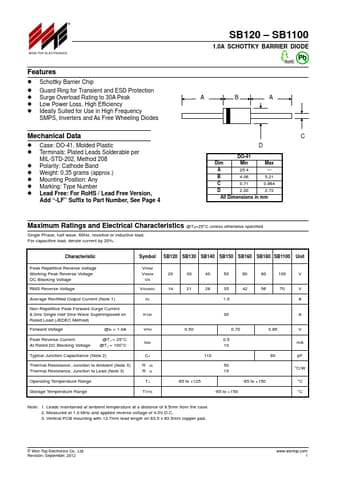

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SB120, SB120-WON
Manufacturer
WON-TOP
File Size
40.38 KB
Datasheet
SB120-WON-TOP.pdf
Description
1.0A SCHOTTKY BARRIER DIODE
Note
This datasheet PDF includes multiple part numbers: SB120, SB120-WON.
Please refer to the document for exact specifications by model.
