SB150

The SB150 is 1.0A SCHOTTKY BARRIER DIODE designed by WON-TOP.

Product Overview

WON-TOP

Part number	SB150, SB120-WON
Manufacturer	WON-TOP
File Size	40.38 KB
Description	1.0A SCHOTTKY BARRIER DIODE
Datasheet	SB120-WON-TOP.pdf
Note	This datasheet PDF includes multiple part numbers: SB150, SB120-WON. Please refer to the document for exact specifications by model.

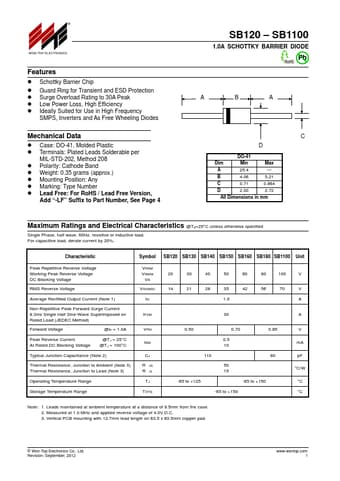

Additional preview pages of the SB150 datasheet.

Schottky Barrier Chip.
Guard Ring for Transient and ESD Protection.
Surge Overload Rating to 30A Peak.
Low Power Loss, High Efficiency.
Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes Mechanical Data.
Case: DO-41, Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: Cathode Band.
Weight: 0.35 grams (approx. ).
Mounting Position: Any.
Marking: Type Number.
