SB230, SB220-WON 2.0A SCHOTTKY BARRIER DIODE

SB230 Description

® WON-TOP ELECTRONICS .

SB230 Features

* Schottky Barrier Chip
* Guard Ring for Transient and ESD Protection
* Surge Overload Rating to 50A Peak
* Low Power Loss, High Efficiency
* Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes Mechanical Data
* Case: DO-15, Molded Plastic

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SB230, SB220-WON. Please refer to the document for exact specifications by model.

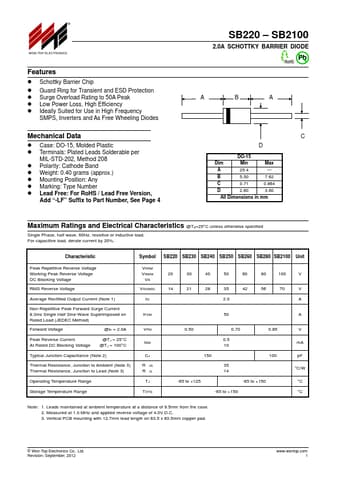

datasheet Preview Page 2 datasheet Preview Page 3
