SB3050CT, SB3020CT-WON 30A DUAL SCHOTTKY BARRIER RECTIFIER

SB3050CT Description

® WON-TOP ELECTRONICS SB3020CT * SB30100CT 30A DUAL SCHOTTKY BARRIER RECTIFIER Pb .

SB3050CT Features

* Schottky Barrier Chip
* Guard Ring for Transient Protection
* Low Forward Voltage Drop
* Low Power Loss, High Efficiency
* High Surge Current Capability
* Epoxy Meets UL 94V-0 Classification
* Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SB3050CT, SB3020CT-WON. Please refer to the document for exact specifications by model.

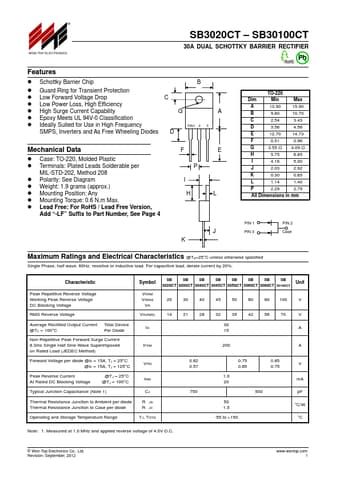

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SB3050CT, SB3020CT-WON
Manufacturer
WON-TOP
File Size
42.34 KB
Datasheet
SB3020CT-WON-TOP.pdf
Description
30A DUAL SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SB3050CT, SB3020CT-WON.
Please refer to the document for exact specifications by model.
