DHB020N03 - 210A 30V N-channel Enhancement Mode Power MOSFET

DHB020N03 Description

DH020N03/DHF020N03/DHI020N03/ DHE020N03/DHB020N03/DHD020N03 210A 30V N-channel Enhancement Mode Power MOSFET 1 .
These N-channel enhanced vdmosfets used advanced trench technology design, provided excellent Rdson and low gate charge.

DHB020N03 Features

* Fast switching
* Low on resistance(Rdson≤2.0mΩ)
* Low gate charge(Typ: 65nC)
* Low reverse transfer capacitances(Typ: 435pF)
* 100% single pulse avalanche energy test

DHB020N03 Applications

* SPMS applications TO-220C TO-220F TO-262
* Load switch
* Power management
* BMS System TO-263 4 Electrical Characteristics 4.1 Absolute Maximum Rating(Tc=25℃,unless otherwise noted) TO-252B TO-251B Parameter Symbol Rating DH020N03/ DHI020N03/DHE020N03 /DHB020N03/DHD020N03

📥 Download Datasheet

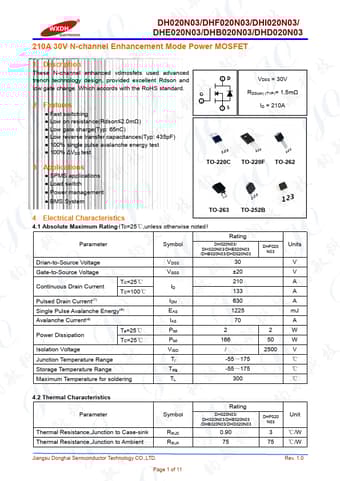

Preview of DHB020N03 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DHB020N03
Manufacturer
WXDH
File Size
1.18 MB
Datasheet
DHB020N03-WXDH.pdf
Description
210A 30V N-channel Enhancement Mode Power MOSFET
