BTA204-800C Datasheet - WeEn

3Q Hi-Com Triac

BTA204-800C Features

* 3Q technology for improved noise immunity

* High blocking voltage capability

* High commutation capability with maximum false trigger immunity

* High immunity to false turn-on by dV/dt

* Less sensitive gate for very high noise immunity

* Planar passi

BTA204-800C General Description

Planar passivated high commutation three quadrant triac in a SOT78 (TO-220AB) plastic package intended for use in circuits where high static and dynamic dV/dt and high dI/dt can occur. This "series C" triac will commutate the full rated RMS current at the maximum rated junction temperature without t.

BTA204-800C Datasheet (459.57 KB)

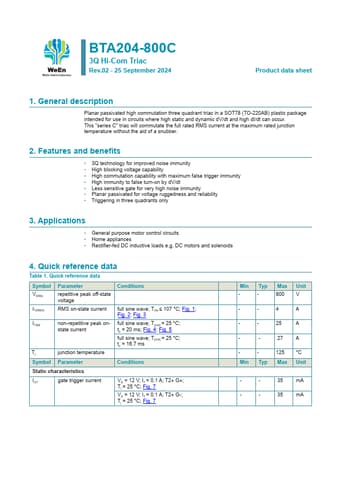

Preview of BTA204-800C PDF

Datasheet Details

Part number:

BTA204-800C

Manufacturer:

WeEn

File Size:

459.57 KB

Description:

3q hi-com triac.
