WCMA1008U1X Datasheet - Weida Semiconductor

128K x 8 Static RAM

WCMA1008U1X Features

* High Speed

* 55ns and 70ns availability

* Voltage range

* 2.7V

* 3.6V

* Ultra low active power

* Typical active current: 20 mA @ f = fmax (70ns speed)

* Low standby power

* Easy memory expansion with CE and OE features

WCMA1008U1X General Description

The WCMA1008U1X is a high-performance CMOS static RAM organized as 128K words by 8 bits. Easy memory expansion is provided by an active LOW Chip Enable (CE1), an active HIGH Chip Enable (CE2), an active LOW Output Enable (OE) and three-state drivers. These devices have an automat- Logic Block Diagr.

WCMA1008U1X Datasheet (274.82 KB)

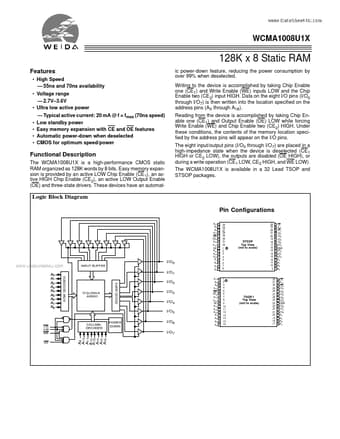

WCMA1008U1X Datasheet Preview — Preview of WCMA1008U1X PDF

Datasheet Details

Part number:

WCMA1008U1X

Manufacturer:

Weida Semiconductor

File Size:

274.82 KB

Description:

128k x 8 static ram.
