WCMA1008C1X

128K x 8 Static RAM

WCMA1008C1X Features

* Voltage Range

* 4.5V

* 5.5V

* Low active power

* Typical active current: 6 mA @ f = fmax (70 ns speed)

* Low standby current

* Automatic power-down when deselected

* TTL-compatible inputs and outputs

* Easy memory expansion with

WCMA1008C1X General Description

The WCMA1008C1X is a high-performance CMOS static RAM organized as 128K words by 8 bits. Easy memory expansion is provided by an active LOW Chip Enable (CE1), an active HIGH Chip Enable (CE2), an active LOW Output Enable Logic Block Diagram Pin Configuration Top View SOIC A17 A16 A14 A12 A7 A6 A5 .

WCMA1008C1X Datasheet (247.15 KB)

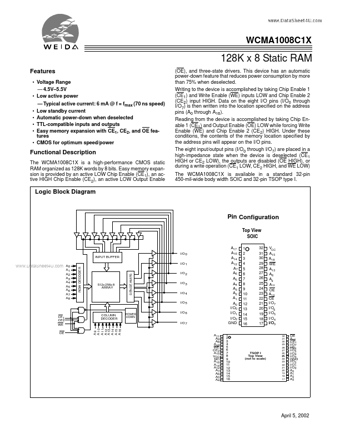

Preview of WCMA1008C1X PDF

Datasheet Details

Part number:

WCMA1008C1X

Manufacturer:

Weida Semiconductor

File Size:

247.15 KB

Description:

128k x 8 static ram.
