WCMA2016U4B - 128K x 16 Static RAM

📥 Download Datasheet

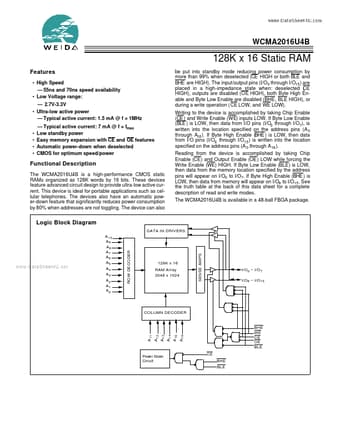

WCMA2016U4B Datasheet Preview — Preview of WCMA2016U4B PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	WCMA2016U4B
Manufacturer	Weida Semiconductor
File Size	278.39 KB
Description	128K x 16 Static RAM
Datasheet	WCMA2016U4B_WeidaSemiconductor.pdf

WCMA2016U4B Product details

Description

of read and write modes.

Features

High Speed.
55ns and 70ns speed availability.
Low Voltage range:.
2.7V-3.3V.
Ultra-low active power.
Typical active current: 1.5 mA @ f = 1MHz.
Typical active current: 7 mA @ f = fmax Low standby power Easy memory expansion with CE and OE features Automatic power-down when deselected CMOS for optimum speed/power be put into standby mode reducing power consumption by more than 99% when deselect.
