WT6803 Datasheet, Sheet, Weltrend Semiconductor

WT6803 Features

  • Sheet
  • Programmable horizontal resolutions up to 2040 dots per line
  • Horizontal frequency up to 150kHz
  • Dot Frequency generated by On-chip PLL up to 160MHz

PDF File Details

Part number:

WT6803

Manufacturer:

Weltrend Semiconductor

File Size:

98.08kb

Download:

📄 Datasheet

Description:

Monitor on-screen display data sheet. WT6803 is designed to interface with a MCU to do the OSD (On Screen Display) function in CRT monitor. The on-chip PLL generates a wid

Datasheet Preview: WT6803 📥 Download PDF (98.08kb)

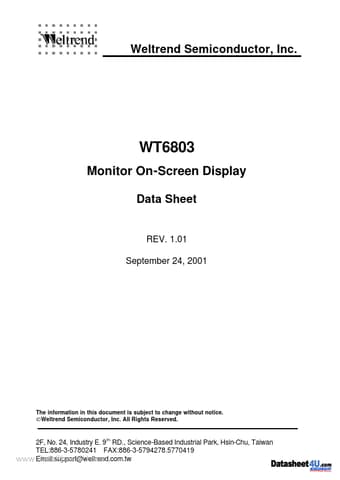

Page 2 of WT6803 Page 3 of WT6803
