EDI816256CA, 256Kx16 MONOLITHIC SRAM

White Electronic Designs 256Kx16 MONOLITHIC SRAM, SMD 5962-96795 .
A0-17 LB# (I/O1-8) UB# (I/O9-16) I/O1-16 CS# OE# WE# VCC VSS NC Address Inputs Lower-Byte Control (I/O1-8) Upper-Byte Control (I/O9-16) Data Input/Out.

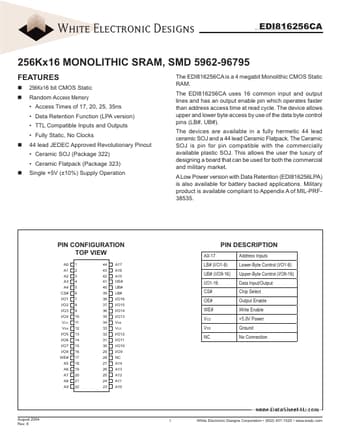

datasheet Preview Page 1 from Datasheet4u.com

EDI816256CA_WhiteElectronicDesignsCorporation.pdf

EDI816256CA Datasheet Preview — Preview of EDI816256CA PDF

Datasheet Details

Part number:

EDI816256CA

Manufacturer:

White Electronic Designs Corporation

File Size:

296.39 KB

Description:

256Kx16 MONOLITHIC SRAM

Features

* 256Kx16 bit CMOS Static Random Access Memory
* Access Times of 17, 20, 25, 35ns
* Data Retention Function (LPA version)
* TTL Compatible Inputs and Outputs
* Fully Static, No Clocks 44 lead JEDEC Approved Revolutionary Pinout
* Ceramic SOJ (Package 322)

Applications

* Military product is available compliant to Appendix A of MIL-PRF38535. PIN CONFIGURATION TOP VIEW A0 A1 A2 A3 A4 CS# I/O1 I/O2 I/O3 I/O4 VCC VSS I/O5 I/O6 I/O7 I/O8 WE# A5 A6 A7 A8 A9 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26
