WSF128K32-xH2x

128K x 32 SRAM/FLASH MODULE

WSF128K32-xH2x Features

* Access Times of 25ns (SRAM) and 70, 90 and 120ns (FLASH)

* Packaging: • 66-pin, PGA Type, 1.385 inch square HIP, Hermetic Ceramic HIP (Package 402)

* 128Kx32 SRAM

* 128Kx32 5V Flash

* Organized as 128Kx32 of SRAM and 128Kx32 of Flash Memory with common Data Bus

* Low Power

WSF128K32-xH2x General Description

D0-31 A0-16 SWE 1-4 SCS OE VCC GND NC FWE1-4 FCS Data Inputs/Outputs Address Inputs SRAM Write Enables SRAM Chip Select Output Enable Power Supply Ground Not Connected Flash Write Enables Flash Chip Select BLOCK DIAGRAM FWE2 SWE2 FWE3 SWE3 FWE4 SWE4 128K x 8 Flash 128K x 8 SRAM 128K x 8 Flash 128.

WSF128K32-xH2x Datasheet (246.86 KB)

Preview of WSF128K32-xH2x PDF

Datasheet Details

Part number:

WSF128K32-xH2x

Manufacturer:

White Electronic

File Size:

246.86 KB

Description:

128k x 32 sram/flash module.

📁 Related Datasheet

WSF128K16-xxx - 128K X 16 SRAM /FLASH MODULE SMD 5962-96900 (White Electronic)
.. WSF128K16-XXX 128Kx16 SRAM/FLASH MODULE, SMD 5962-96900 FEATURES n n n Access Times of 35ns (SRAM) and 70ns (FLASH) n Access Time.

WSF2012 - Metal Film Resistors (Vishay)
.vishay. WSF Vishay Dale Metal Film Resistors, Power, Surface Mount Note * This datasheet provides information about parts that are RoHS-co.

WSF2515 - Metal Film Resistors (Vishay)
.vishay. WSF Vishay Dale Metal Film Resistors, Power, Surface Mount Note * This datasheet provides information about parts that are RoHS-co.

WSF256K8-xCx - 256Kx8 SRAM/ FLASH MODULE (White Electronic)
.. WSF256K8-XCX 256Kx8 SRAM/ FLASH MODULE FIG. 1 PIN CONFIGURATION TOP VIEW A18 A16 A15 A12 A7 A6 A5 A4 A3 A2 A1 A0 I/O0 I/O1 I/O2 V.

WSF2816-39XX - 128K x 16 SRAM / 512K x 16 FLASH MODULE (White Electronic)
.. White Electronic Designs 128KX16 SRAM/512KX16 FLASH MODULE FEATURES Access Times of 35ns (SRAM) and 90ns (FLASH) Packaging • 66 p.

WSF3085 - N-Channel MOSFET (Winsok)
WSF3085 N-Ch MOSFET General Description The WSF3085 is the highest performance trench N-ch MOSFET with extreme high cell density , which provide exce.

WSF4012 - P & N-Channel MOSFET (Winsok)
WSF4012 N-Ch and P-Channel MOSFET General Description Product Summery The WSF4012 is the highest performance trench N-ch and P-ch MOSFET with extre.

WSF40N10 - N-Channel MOSFET (VBsemi)
WSF40N10-VB WSF40N10-VB Datasheet N-Channel 100-V (D-S) MOSFET .VBsemi. PRODUCT SUMMARY V(BR)DSS (V) rDS(on) (Ω) 100 0.030 at VGS = 10 V .

TAGS

WSF128K32-xH2x 128K SRAM FLASH MODULE White Electronic

Image Gallery

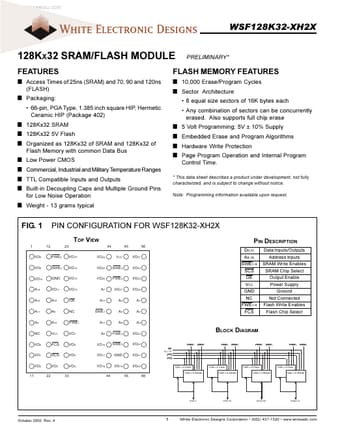

WSF128K32-xH2x Datasheet Preview Page 2 WSF128K32-xH2x Datasheet Preview Page 3
