W24129A - 16K x 8 HIGH-SPEED CMOS STATIC RAM

Winbond

📥 Download Datasheet

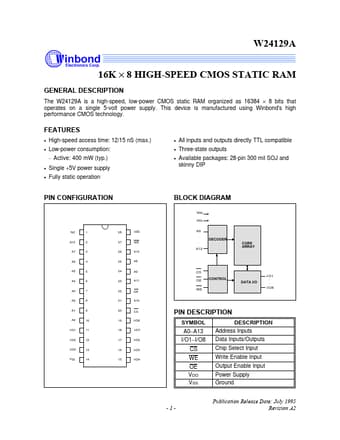

W24129A Datasheet Preview — Preview of W24129A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	W24129A
Manufacturer	Winbond
File Size	171.09 KB
Description	16K x 8 HIGH-SPEED CMOS STATIC RAM
Datasheet	W24129A_Winbond.pdf

W24129A Product details

Description

The W24129A is a high-speed, low-power CMOS static RAM organized as 16384 × 8 bits that operates on a single 5-volt power supply.

Features

High-speed access time: 12/15 nS (max. ).
Low-power consumption:.
Active: 400 mW (typ. ).
Single +5V power supply.
Fully static operation.
All inputs and outputs directly TTL compatible.
Three-state outputs.
Available packages: 28-pin 300 mil SOJ and skinny DIP PIN.
