2SA671 Datasheet - Wing Shing Computer Components

2SA671 - PNP EPITAXIAL SILICON TRANSISTOR

2SA671 PNP EPITAXIAL SILICON TRANSISTOR LOW FREQUENCY POWER AMPLIFIER TO-220 ! Complement to 2SC1061 ABSOLUTE MAXIMUM RATINGS (TA=25℃) Characteristic Collector-Base Voltage Collector-Emitter Voltage Emitter-Base voltage Collector Current (DC) Collector Dissipation (Tc=25℃) Junction Temperature Storage Temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg Rating -50 -50 -5 -3 25 150 -50~150 Unit V V V A W ℃ ℃ ELECTRICAL CHARACTERISTICS (TA=25℃) Characteristic Collector Cutoff Current Emitter Cut.

2SA671_WingShingComputerComponents.pdf

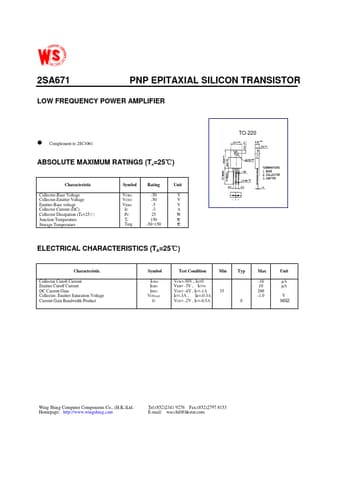

2SA671 Datasheet Preview — Preview of 2SA671 PDF

Datasheet Details

Part number:

2SA671

Manufacturer:

Wing Shing Computer Components

File Size:

69.38 KB

Description:

Pnp epitaxial silicon transistor.

2SA671 Distributor
