WS2994A Datasheet - Winsemi

Fast turn-off Dual LLC Synchronous Rectifier Controller

WS2994A Features

* VDA, VDB can withstand 120V

* Wide VCC Operation Range,Support 4.83V ~ 35V

* 140uA Low Quiescent Current in Light Load Mode

* Fast Turn-Off ,Support CCM/CrCM/DCM

* High level up to 11.5V for Driver

* Interlock function for Channel A&B

* SOP-8 Package Typical Application

WS2994A General Description

WS2994A is a high performance dual channel synchronous rectifier controller, which is applied to the output side rectifier of half bridge LLC resonant converter, and can realize the optimal control of MOSFET. By detecting the Vds voltage of the rectified MOSFET, the MOSFET can be reliably switched o.

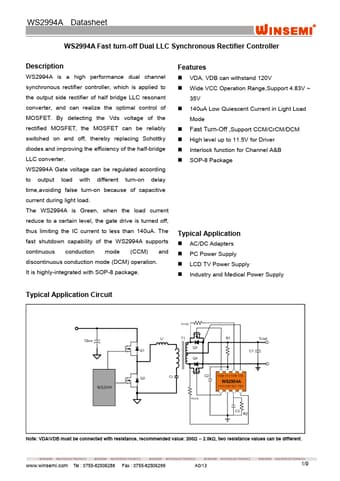

WS2994A Datasheet (0.96 MB)

WS2994A Datasheet Preview — Preview of WS2994A PDF

Datasheet Details

Part number:

WS2994A

Manufacturer:

Winsemi

File Size:

0.96 MB

Description:

Fast turn-off dual llc synchronous rectifier controller.
