WS2995 Datasheet - Winsemi

Fast turn-off Dual LLC Synchronous Rectifier Controller

WS2995 Features

* VDA, VDB can withstand 120V

* Wide VCC Operation Range,Support 4.83V ~ 35V

* 140uA Low Quiescent Current in Light Load Mode

* Fast Turn-Off ,Support CCM/CrCM/DCM

* High level up to 11.5V for Driver

* Interlock function for Channel A&B

* SOP-8 Package Typical Application

WS2995 General Description

WS2995 is a high performance dual channel synchronous rectifier controller, which is applied to the output side rectifier of half bridge LLC resonant converter, and can realize the optimal control of MOSFET. By detecting the Vds voltage of the rectified MOSFET, the MOSFET can be reliably switched on.

WS2995 Datasheet (974.65 KB)

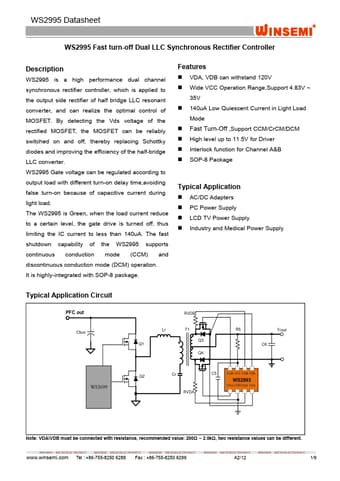

WS2995 Datasheet Preview — Preview of WS2995 PDF

Datasheet Details

Part number:

WS2995

Manufacturer:

Winsemi

File Size:

974.65 KB

Description:

Fast turn-off dual llc synchronous rectifier controller.
