WS2995A - Fast turn-off Dual LLC Synchronous Rectifier Controller

Winsemi

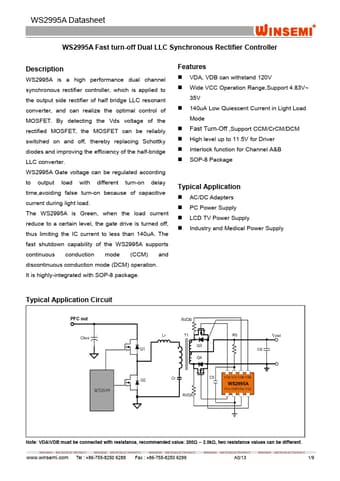

WS2995A Datasheet Preview — Preview of WS2995A PDF

Datasheet Details

Part number	WS2995A
Manufacturer	Winsemi
File Size	962.32 KB
Description	Fast turn-off Dual LLC Synchronous Rectifier Controller
Datasheet	WS2995A-Winsemi.pdf

WS2995A Product details

Description

WS2995A is a high performance dual channel synchronous rectifier controller, which is applied to the output side rectifier of half bridge LLC resonant converter, and can realize the optimal control of MOSFET.

Features

VDA, VDB can withstand 120V.
Wide VCC Operation Range,Support 4.83V~ 35V.
140uA Low Quiescent Current in Light Load Mode.
Fast Turn-Off ,Support CCM/CrCM/DCM.
High level up to 11.5V for Driver.
Interlock function for Channel A&B.
SOP-8 Package Typical.
