WST3401 Datasheet - Winsok

WST3401 P-Ch MOSFET

The WST3401 is the highest performance trench P-Ch MOSFET with extreme high cell density , which provide excellent RDSON and gate charge for most of the small power switching and load switch applications . The WST3401 meet the RoHS and Green Product requirement , with full function reliability appro.

WST3401 Features

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z Green Device Available Product Summery BVDSS -30V RDSON 44mΩ ID -5.5A Applications z High Frequency Point-of-Load Synchronous Buck Converter for MB/NB/UMPC/VGA z Networking DC-DC Power Sys

WST3401 Datasheet (2.46 MB)

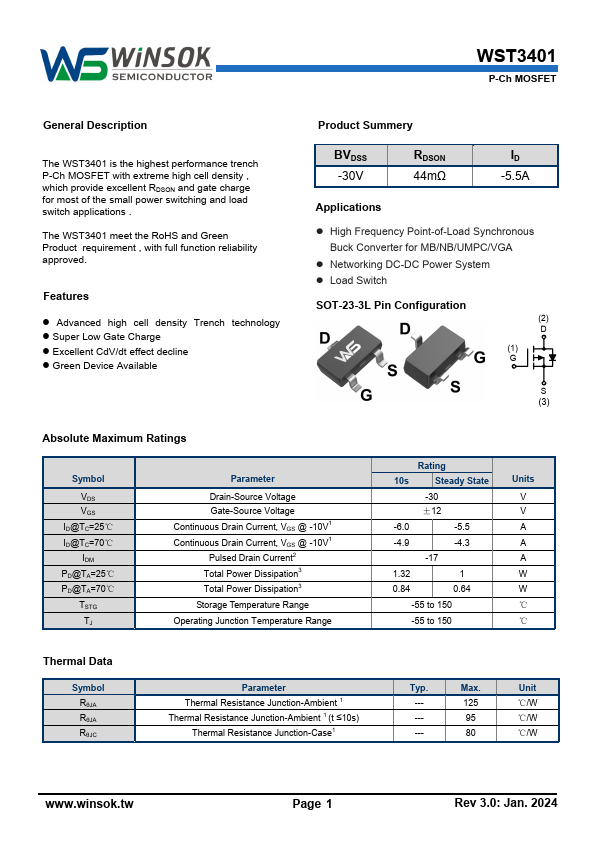

Preview of WST3401 PDF

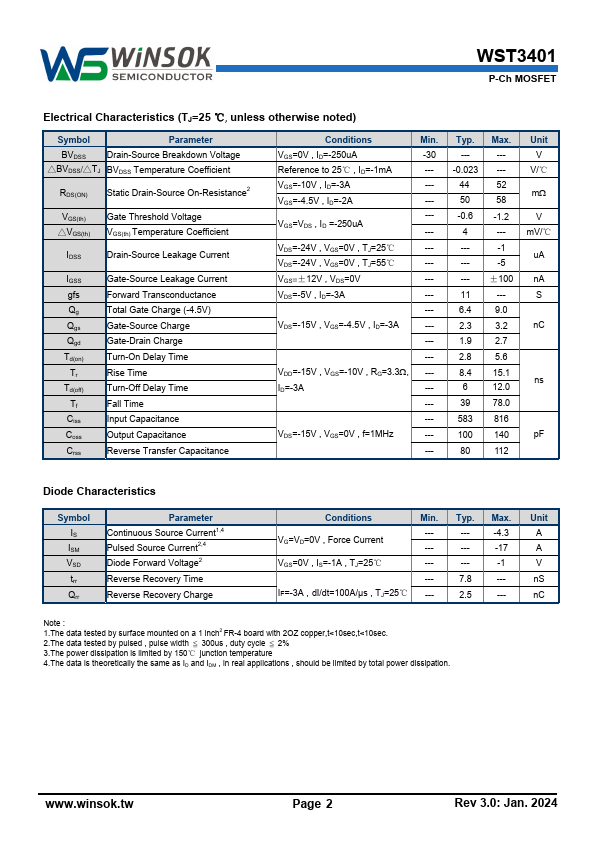

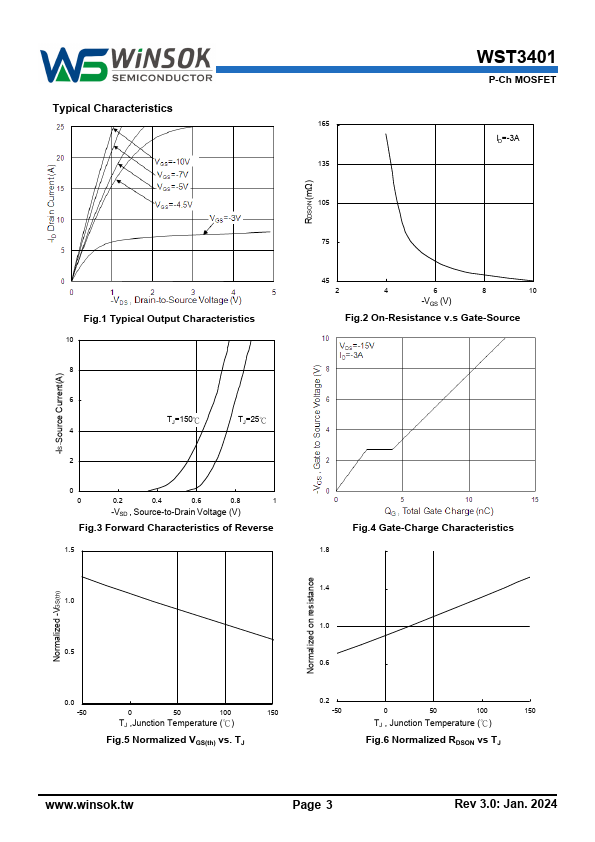

WST3401 Datasheet Preview Page 2 WST3401 Datasheet Preview Page 3

Datasheet Details

Part number:

WST3401

Manufacturer:

Winsok

File Size:

2.46 MB

Description:

P-ch mosfet.
