WST2907 PNP EPITAXIAL SILICON TRANSISTOR

WST2907/S PNP EPITAXIAL SILICON TRANSISTOR GENERAL PURPOSE APPLICATION SWITCHING APPLICATION ◇ Collector Current Ic=600mA ◇ Complementary to WST2222/S 3 SOT-23 ABSOLUTE MAXIMUM RATINGS Characteristic Collector-Base Voltage Collector-Emitter Voltage Emitter-Base voltage Collector Current Collector Power Dissipation Junction Temperature Storage Temperature ◇Mark Information (Ta=25℃) 2 1 1. Emitter Symbol VCBO VCEO VEBO IC PC Tj Tstg Value -60 -40 -5 -600 TO-92 :650 SOT-23(S):350 Unit V V V .

WST2907 Datasheet (196.89 KB)

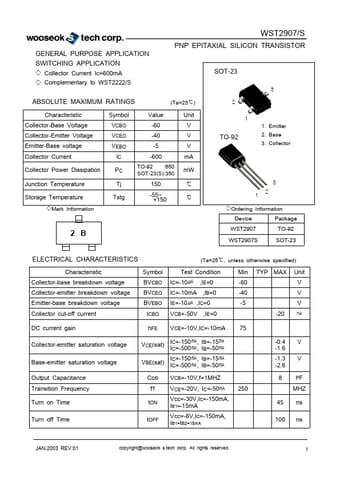

WST2907 Datasheet Preview — Preview of WST2907 PDF

Datasheet Details

Part number:

WST2907

Manufacturer:

Wooseok

File Size:

196.89 KB

Description:

Pnp epitaxial silicon transistor.
